Type - 54
PCD CIRCULAR SAW BLADE FOR BEAM SAW MACHINE
| Diameter | Teeth | Bore |
| 300mm | 72 | 30mm |
| Hook | Pinhole | Tooth Type |

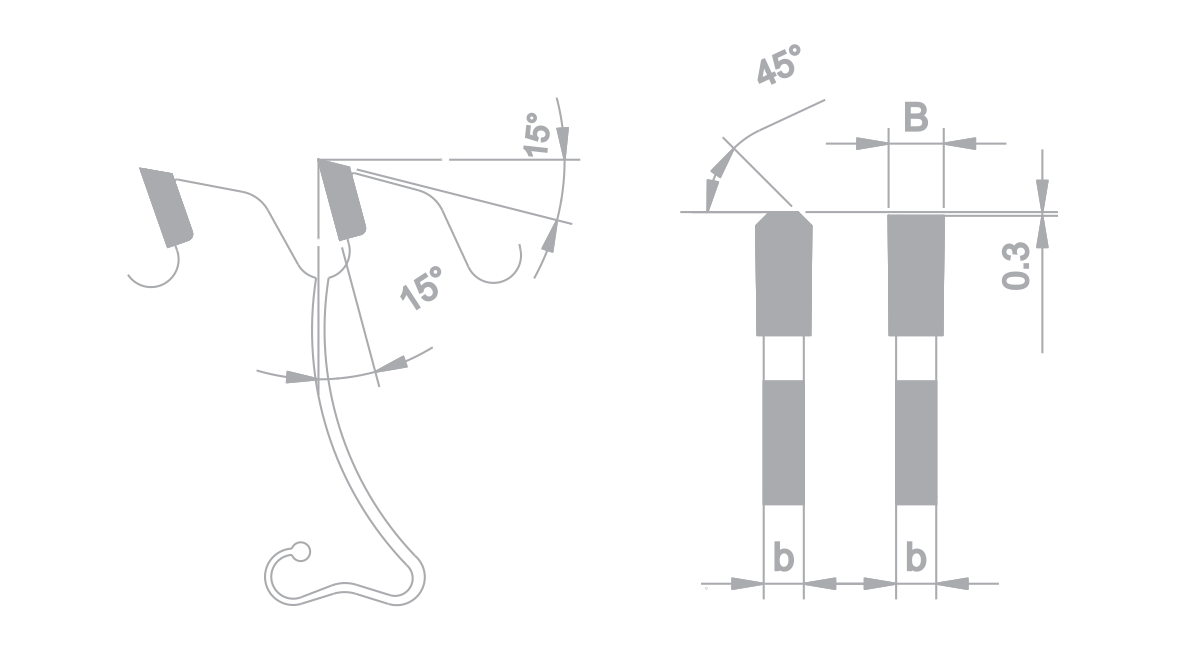

| - | - | FZ./TR |
| Material :- Chipboard, MDF & HDF, Melamine Board. |
| Machine :- Beam Saw machine |
| Application :- To Size Single or Multiple Panel for Optimal Quality Cutting and Long Edge Life of Products. |
| ORDER NO | DIA (mm) | THICK (mm) | BORE (mm) | THEETH | PIN HOLE | THOOTH TYPE |
| 54 - PT . PCD 127230 | 300 | 4.4 | 30 | 72 | 10-02-60 | FZ./TR |
| 54 - PT . PCD 137265 | 320 | 4.4 | 65 | 72 | 2/9/110 | FZ./TR |
| 54 - PT . PCD 147230 | 350 | 4.4 | 30 | 72 | 10-02-60 | FZ./TR |
| 54 - PT . PCD 147260 | 350 | 4.4 | 60 | 72 | 2/14/100 | FZ./TR |
| 54 - PT . PCD 147265 | 350 | 4.4 | 65 | 72 | 2/9/110 | FZ./TR |
| 54 - PT . PCD 147275 | 350 | 4.4 | 75 | 72 | 4/15/105 | FZ./TR |
| 54 - PT . PCD 157260 | 380 | 4.4 | 60 | 72 | 2/14/100 | FZ./TR |
| 54 - PT . PCD 167275 | 400 | 4.4 | 75 | 72 | 4/15/105 | FZ./TR |
