Type - 48

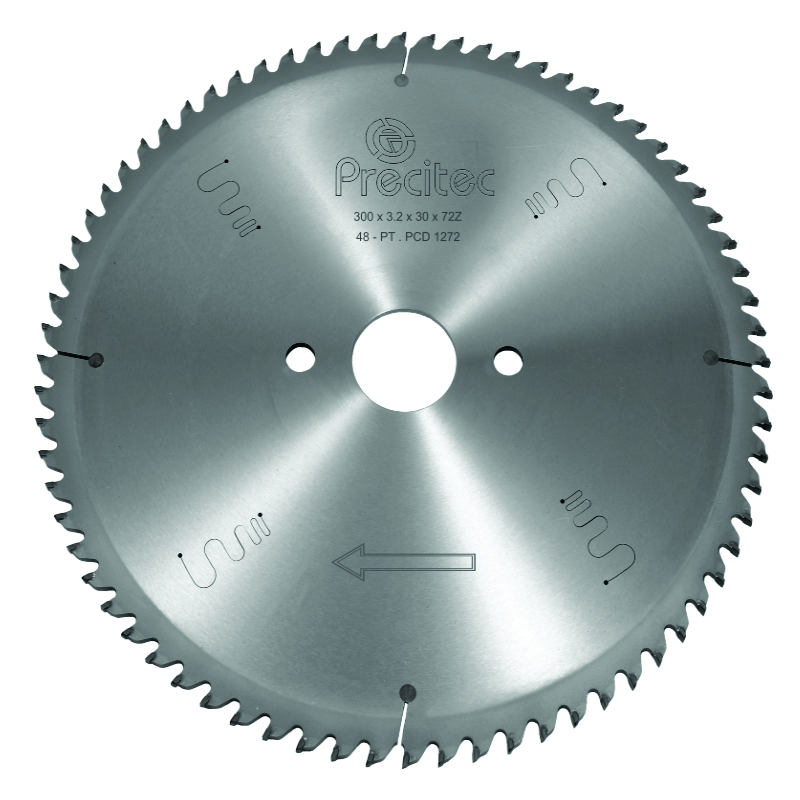

PCD CIRCULAR SAW BLADE FOR PANEL SAW MACHINE
| Diameter | Teeth | Bore |
| 300mm | 72 | 30mm |
| Hook | Pinhole | Tooth Type |

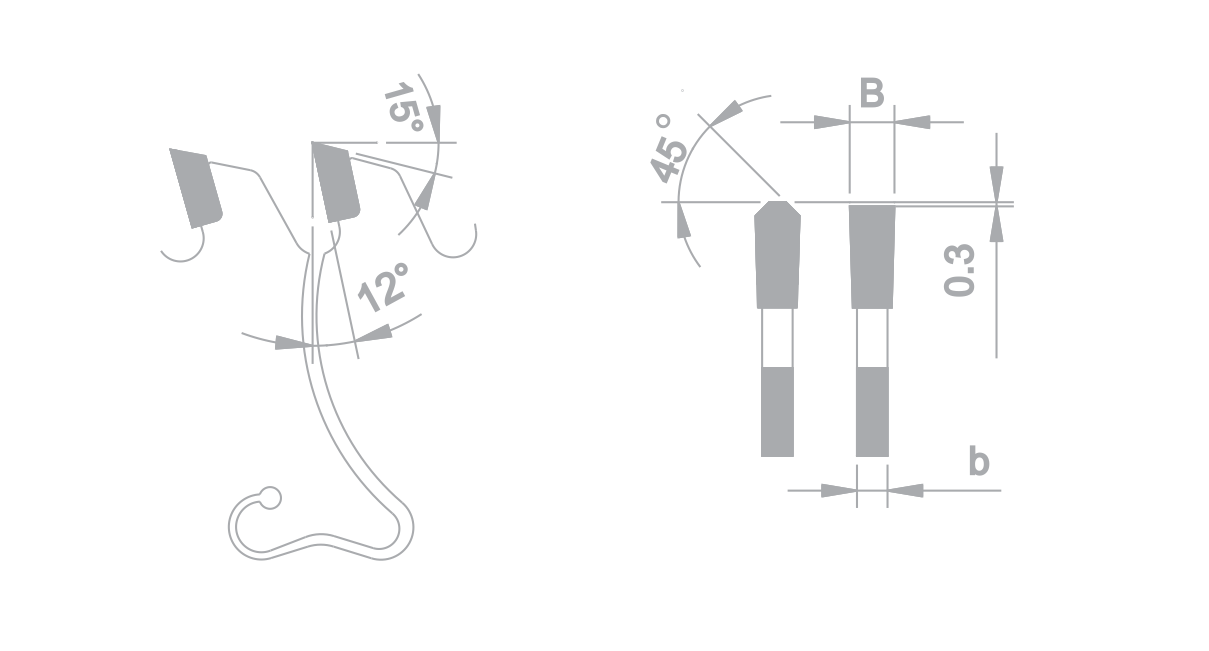

| - | 2/7/42+2/10/60 | FZ L |
| Material :- Chipboard, MDF, laminated Panels. |
| Machine :- Horizontal panel Sizing Machine. |
| Application :- Suitable for longitudinal cutting quality Rip and cross cuts high feed rate and long tool life with scoring saw blade, chipboard with good finish and long cutting life. |
| ORDER NO | DIA (mm) | THICK (mm) | BORE (mm) | THEETH | PIN HOLE | THOOTH TYPE |
| 48 - PT . PCD 1272 | 300 | 3.2 | 30 | 72 | 2/7/42+2/10/60 | FZ L |
| 48 - PT . PCD 1296 | 300 | 3.2 | 30 | 96 | 2/7/42+2/10/60 | FZ P |
