Type - 06

T.C.T. MULTI-RIP CIRCULAR SAWS WITH RAKERS

Diameter Teeth Bore
250mm 20+2+2 30mm

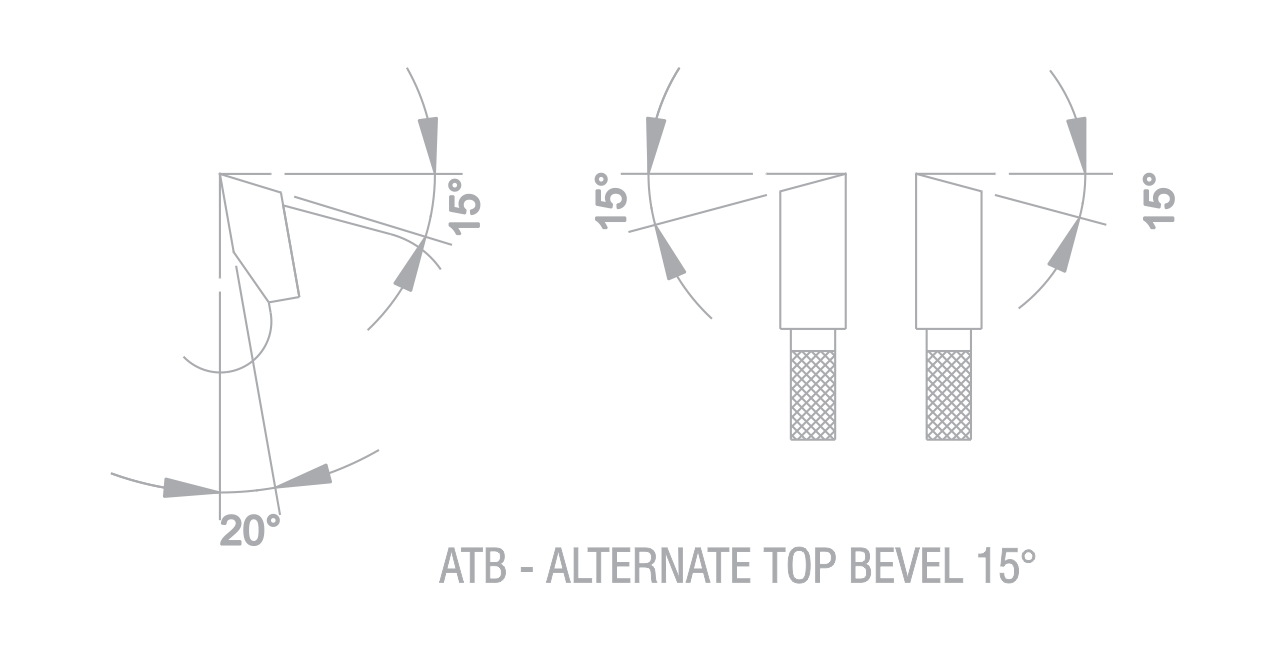

Hook Pinhole Tooth Type
20o - ATB
Circular saw blade Manufacturers in Dhaka, Bangladesh, Circular Saw Blade Manufacturers & Suppliers in Dhaka, Bangladesh, Universal Circular Saws Blades Manufacturer in Dhaka, Bangladesh, Circular Saws For Steel And Matel Manufacturer in Dhaka, Bangladesh, Circular Saws For Non Ferrous Profile Cutting Manufacturer in Dhaka, Bangladesh
Material :- Wet Or Dry Hardwood.
Machine :- Multi-Rip Machine With One Or Two Shafts.
Application :- For Rip Cuts, Mounted On The Sides Of Gang Rip Saws.

Inquiry Now

ORDER NO DIA (mm) THICK (mm) BORE (mm) KEY WAY THEETH THOOTH TYPE
06 - 250 032 020 250 3.2 30 2KW 10X4 20+2+2 ATB
06 - 250 032 060 250 3.2 60 4KW 21X5 20+2+2 ATB
06 - 250 032 070 250 3.2 70 4KW 21X5 20+2+2 ATB
06 - 250 032 080 250 3.2 80 2KW 13x5/21X5 20+2+2 ATB
06 - 300 032 024 300 3.2 30 4KW 10X4 24+2+2 ATB
06 - 300 032 060 300 3.2 60 4KW 21X5 24+2+2 ATB
06 - 300 032 070 300 3.2 70 4KW 21X5 24+2+2 ATB
06 - 300 032 080 300 3.2 80 2KW 13x5/21X5 24+2+2 ATB
06 - 350 035 028 350 3.5 30 2KW 10X4 28+2+4 ATB
06 - 350 035 060 350 3.5 60 4KW 21X5 28+2+4 ATB
06 - 350 035 070 350 3.5 70 4KW 21X5 28+2+4 ATB
06 - 350 035 080 350 3.5 80 2KW 13x5/21X5 28+2+4 ATB
06 - 400 040 028 400 4.0 30   28+2+4 ATB
06 - 400 040 070 400 4.0 70 4KW 21X5 28+2+4 ATB
06 - 400 040 080 400 4.0 80 2KW 13x5/21X5 28+2+4 ATB
