Type - 22
T.C.T. CIRCULAR SAWS FOR BEAM SAW MACHINE
| Diameter | Teeth | Bore |
| 300mm | 72 | 30mm |

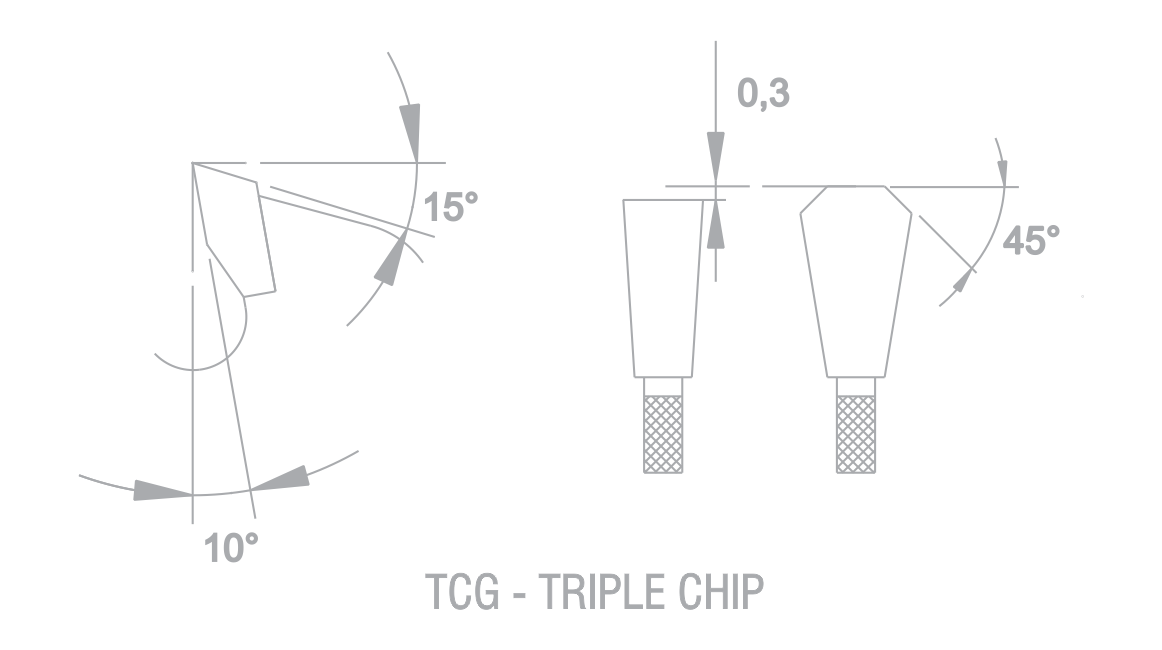

| Hook | Pinhole | Tooth Type |
| 10o | 2/10/60 | FZ-TR |
| Material :-Chip Board , MDF & Laminated Board , Melamine or WPC Board. |
| Machine :- Beamsaw Machines. |
| Application :- To Size Singal Or Multipal Panal For Optimal Quality Cutting High Feed Rate And Long Tool Life With Scoring Saw Blade, In Detail Melamine-Coated Panels, With Good Finishing And Long Cutting Life. |
| ORDER NO | DIA (mm) | THICK (mm) | BORE (mm) | THEETH | PIN HOLE | THOOTH TYPE |
| 22 - 300 044 030 | 300 | 4.4 | 30 | 72 | 2/10/60 | FZ-TR |
| 22 - 322 044 065 | 320 | 4.4 | 65 | 72 | 2/9/110 | FZ-TR |
| 22 - 350 044 030 | 350 | 4.4 | 30 | 72 | 2/10/60 | FZ-TR |
| 22 - 350 044 060 | 350 | 4.4 | 60 | 72 | 2/14/100 | FZ-TR |
| 22 - 350 044 065 | 350 | 4.4 | 65 | 72 | 2/9/110 | FZ-TR |
| 22 - 350 044 075 | 350 | 4.4 | 75 | 72 | 4/15/105 | FZ-TR |
| 22 - 400 044 075 | 400 | 4.4 | 75 | 72 | 4/15/105 | FZ-TR |
| 22 - 450 048 060 | 450 | 4.8 | 60 | 72 | 2/14/125 | FZ-TR |
