Type - 10

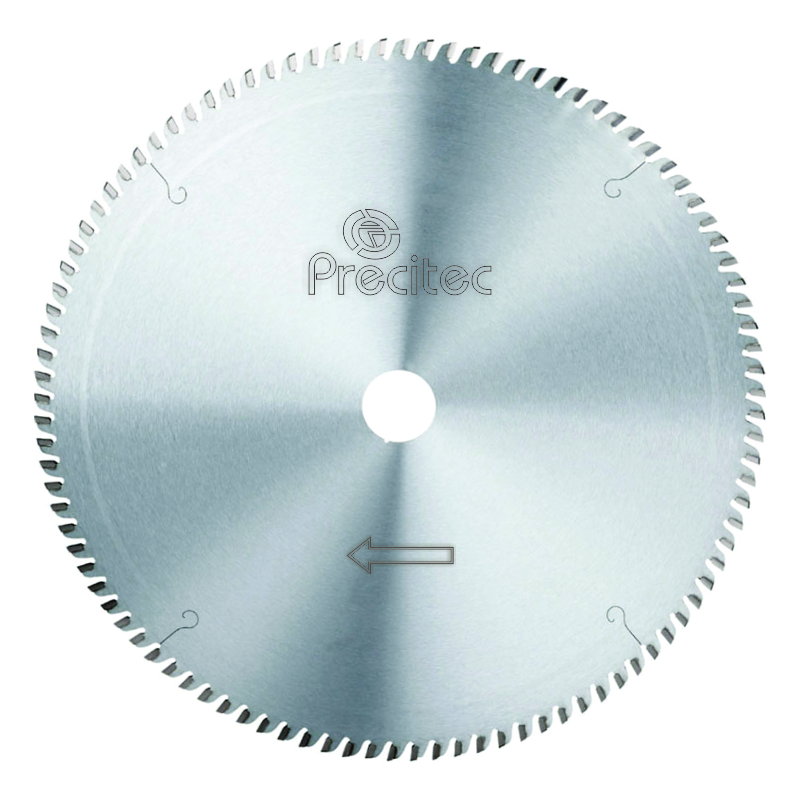

T.C.T. RIP & CROSSCUT CIRCULAR SAWS
Diameter
Teeth
Bore
200mm
40
25.4mm

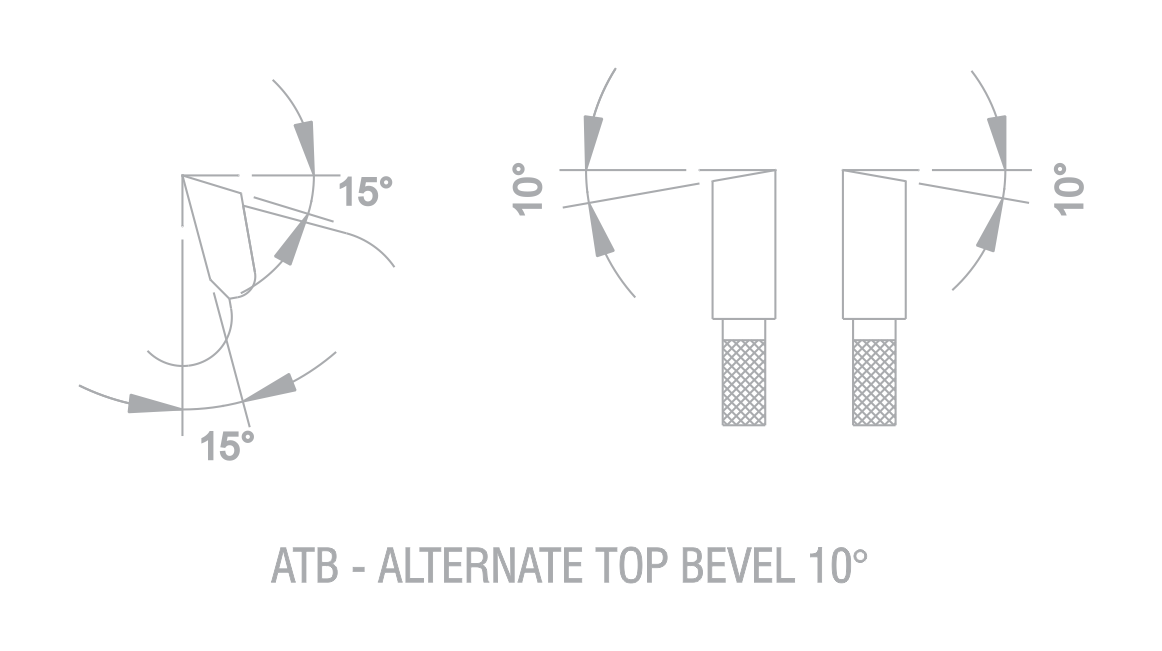

Hook
Pinhole
Tooth Type
15
0
-
ATB
Material :-
Soft And Hardwood , Glued Wood , Solid Dry Wood.
Machine :-
Table Saw , Rip Saw Machine.
Application :-
For Rip And Glue Line Ripcut.
Inquiry Now
ORDER NO
DIA (mm)
THICK (mm)
BORE (mm)
THEETH
THOOTH TYPE
10 - 200 032 040
200
3.2
25.4
40
ATB
10 - 200 032 048
200
3.2
25.4
48
ATB
10 - 250 025 048
250
2.5
25.4
48
ATB
10 - 250 032 024
250
3.2
25.4
24
ATB
10 - 250 032 032
250
3.2
25.4
32
ATB
10 - 250 032 040
250
3.2
25.4
40
ATB
10 - 250 032 048
250
3.2
25.4
48
ATB
10 - 250 032 060
250
3.2
25.4
60
ATB
10 - 300 025 048
300
2.5
25.4
48
ATB
10 - 300 032 024
300
3.2
25.4
24
ATB
10 - 300 032 032
300
3.2
25.4
32
ATB
10 - 300 032 040
300
3.2
25.4
40
ATB
10 - 300 032 048
300
3.2
25.4
48
ATB
10 - 300 032 056
300
3.2
25.4
56
ATB
10 - 300 032 060
300
3.2
25.4
60
ATB
10 - 330 035 048
330
3.5
25.4
48
ATB
10 - 330 035 056
330
3.5
25.4
56
ATB
10 - 350 035 048
350
3.5
25.4
48
ATB
10 - 350 035 056
350
3.5
25.4
56
ATB
10 - 350 035 072
350
3.5
25.4
72
ATB
10 - 400 035 056
400
3.5
25.4
56
ATB
10 - 400 035 072
400
3.5
25.4
72
ATB
