Type - 40

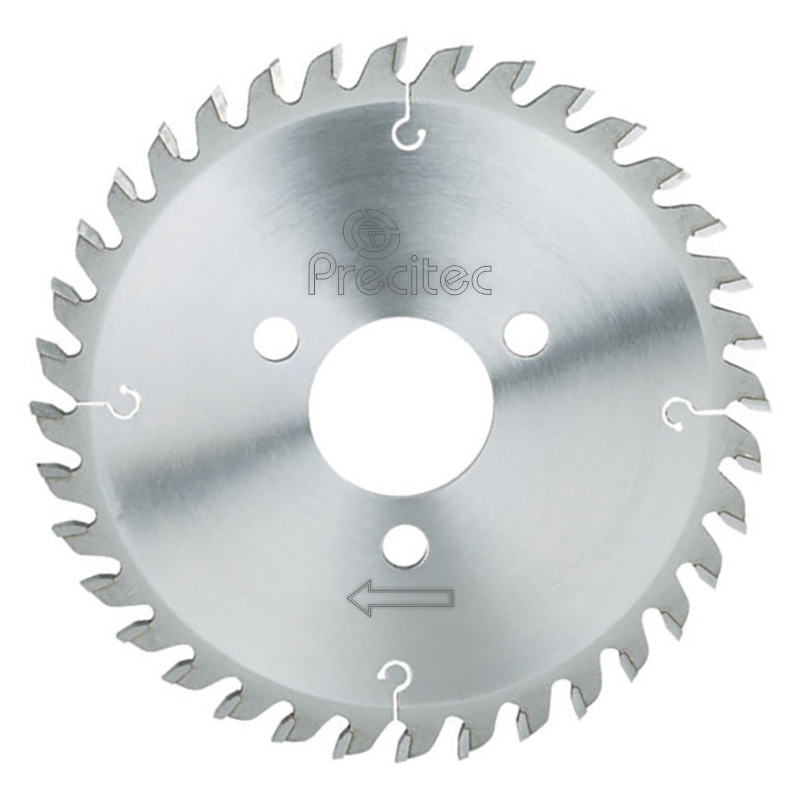

T.C.T. CIRCULAR SAWS FOR ALUMINUM RISER CUTTING
| Diameter | Teeth | Bore |
| 110mm | 18 | 25.4mm |

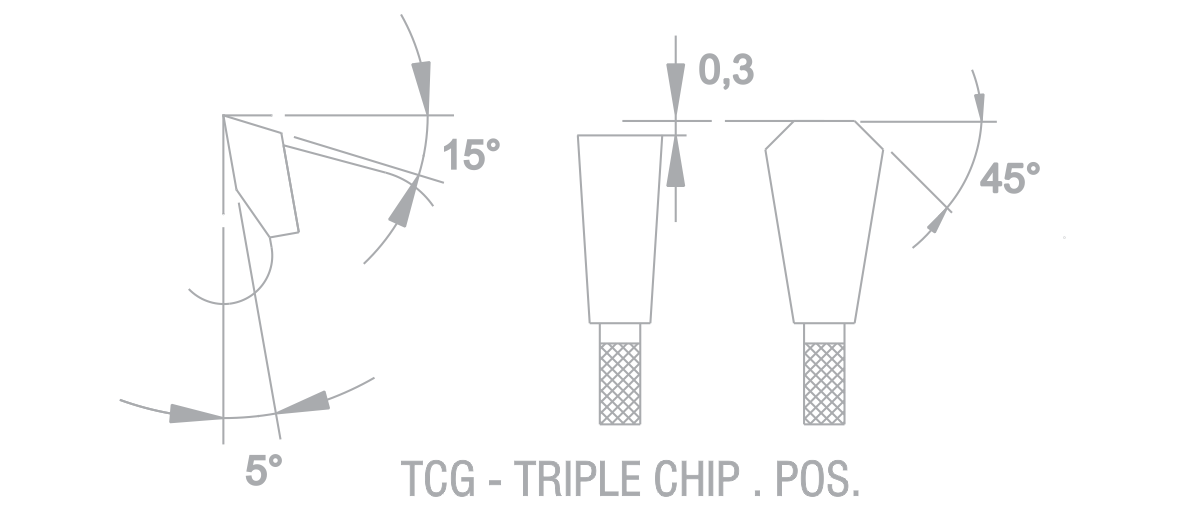

| Hook | Pinhole | Tooth Type |
| 5o | - | TCG |
| Material :- For Aluminium Wheel , Aluminium Casting Riser. |
| Machine :- Automatic & Manual Saw. |
| Application :- Precision Cutting , Auto Parts. |
| ORDER NO | DIA (mm) | THICK (mm) | BORE (mm) | THEETH | THOOTH TYPE |
| 40 - 110 040 018 | 110 | 4.0 | 25.4 | 18 | TCG |
| 40 - 120 040 018 | 120 | 4.0 | 25.4 | 18 | TCG |
| 40 - 125 044 016 | 125 | 4.4 | 25.4 | 16 | TCG |
| 40 - 160 050 040 | 160 | 5.0 | 25.4 | 40 | TCG |
| 40 - 190 028 040 | 190 | 2.8 | 25.4 | 36 | TCG |
| 40 - 220 028 040 | 220 | 2.8 | 25.4 | 40 | TCG |
| 40 - 300 028 040 | 300 | 2.8 | 25.4 | 40 | TCG |
| 40 - 300 032 040 | 300 | 3.2 | 25.4 | 40 | TCG |
| 40 - 300 040 048 | 300 | 4.0 | 25.4 | 48 | TCG |
| 40 - 315 040 040 | 315 | 4.0 | 25.4 | 40 | TCG |
| 40 - 350 030 054 | 350 | 3.0 | 25 | 54 | TCG |
| 40 - 350 035 072 | 350 | 3.5 | 25.4 | 72 | TCG |
| 40 - 350 040 072 | 350 | 4.0 | 25.4 | 72 | TCG |
| 40 - 400 040 022 | 400 | 4.0 | 25.4 | 22 | TCG |
| 40 - 400 035 096 | 400 | 3.5 | 25.4 | 96 | TCG |
| 40 - 405 050 120 | 405 | 5.0 | 25.4 | 120 | TCG |
| 40 - 450 035 096 | 450 | 3.5 | 30 | 96 | TCG |
| 40 - 450 040 072 | 450 | 4.0 | 50 | 72 | TCG |
| 40 - 500 044 072 | 500 | 4.4 | 25.4 | 72 | TCG |
| 40 - 600 045 120 | 600 | 4.5 | 25.4 | 120 | TCG |
| 40 - 650 050 072 | 650 | 5.0 | 25.4 | 72 | TCG |
| 40 - 700 045 072 | 700 | 4.5 | 25.4 | 72 | TCG |
