Type - 34

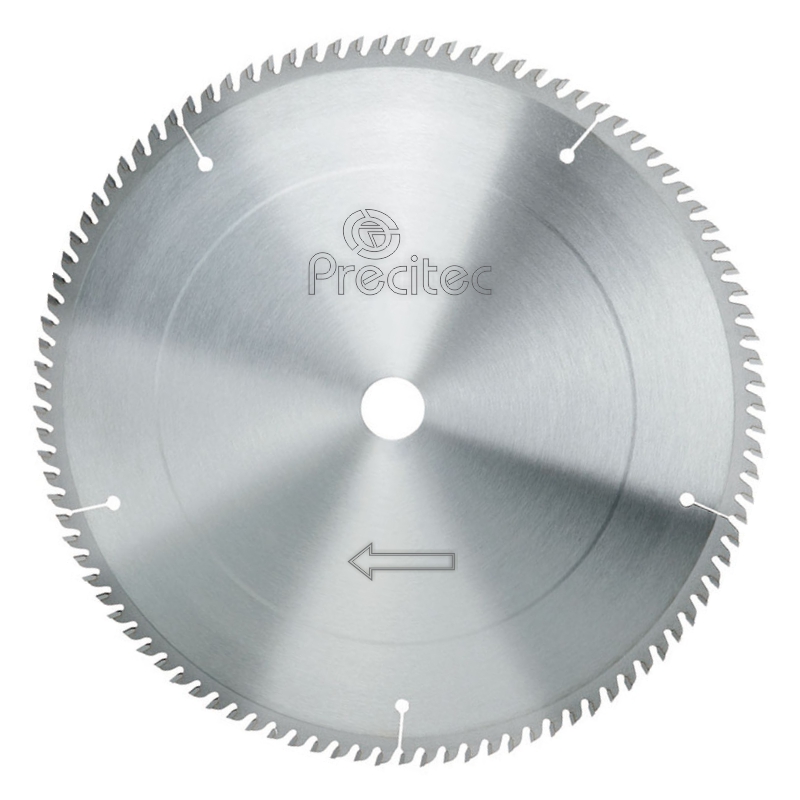

T.C.T. GENERAL PURPOSE CIRCULAR SAWS FOR NON - FERROUS / PLASTIC
Diameter
Teeth
Bore
200mm
60
25.4mm
Hook
Pinhole

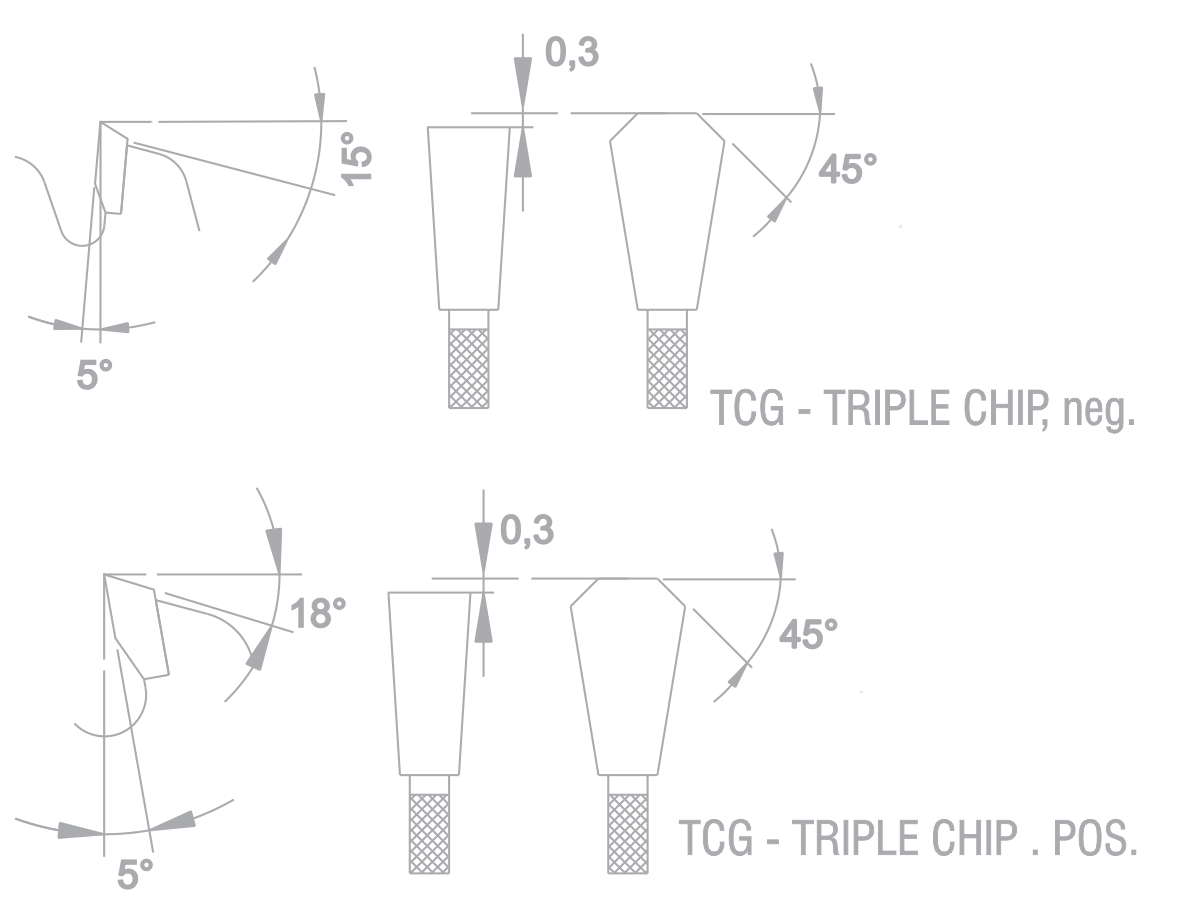

Tooth Type
5
o
- 5
o
-
TCG
Material :-
Aluminum , Copper , Brass , Plastic.
Machine :-
Table And Miter Saws , Protable Machine.
Application :-
For Cutting And Dividing Tubes , Drawn Produets And Solid Blocks.
Inquiry Now
ORDER NO
DIA (mm)
THICK (mm)
BORE (mm)
THEETH
THOOTH TYPE
34 - 200 025 060
200
2.5
25.4
60
TCG
34 - 200 025 080
200
2.5
25.4
80
TCG
34 - 250 032 060
250
3.2
25.4
60
TCG
34 - 250 032 080
250
3.2
25.4
80
TCG
34 - 250 032 100
250
3.2
25.4
100
TCG
34 - 340 032 060
300
3.2
25.4
60
TCG
34 - 340 032 080
300
3.2
25.4
80
TCG
34 - 340 032 100
300
3.2
25.4
100
TCG
34 - 350 035 080
350
3.5
25.4
80
TCG
34 - 350 035 100
350
3.5
25.4
100
TCG
34 - 350 035 120
350
3.5
25.4
120
TCG
