Type - 42

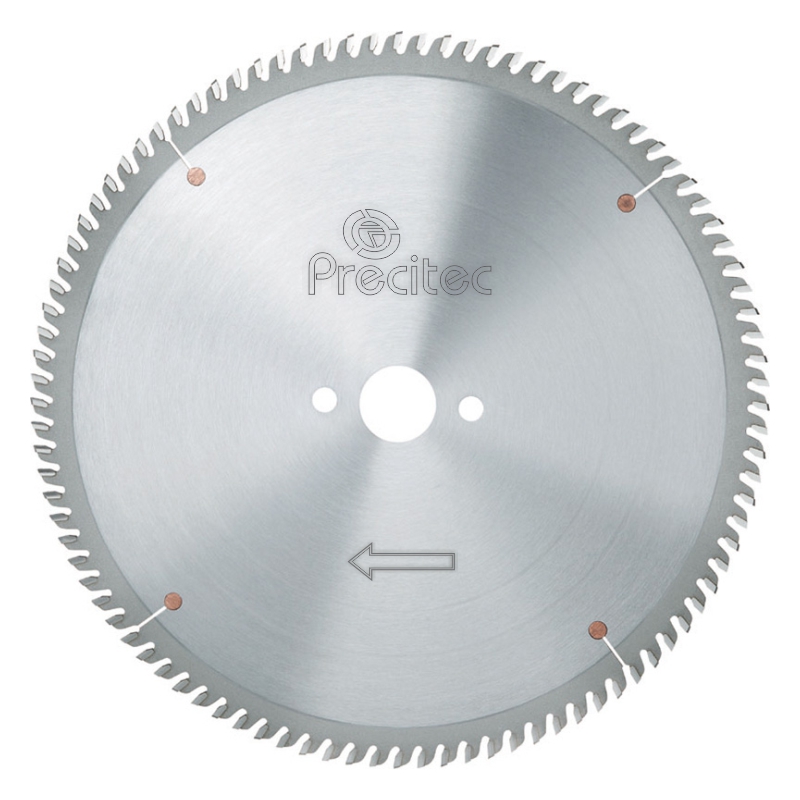

T.C.T. CIRCULAR SAWS FOR BATTERY PLATE AND SILICON PLATE
| Diameter | Teeth | Bore |
| 175mm | 80 | 25.4mm |
| Hook | Pinhole | Tooth Type |

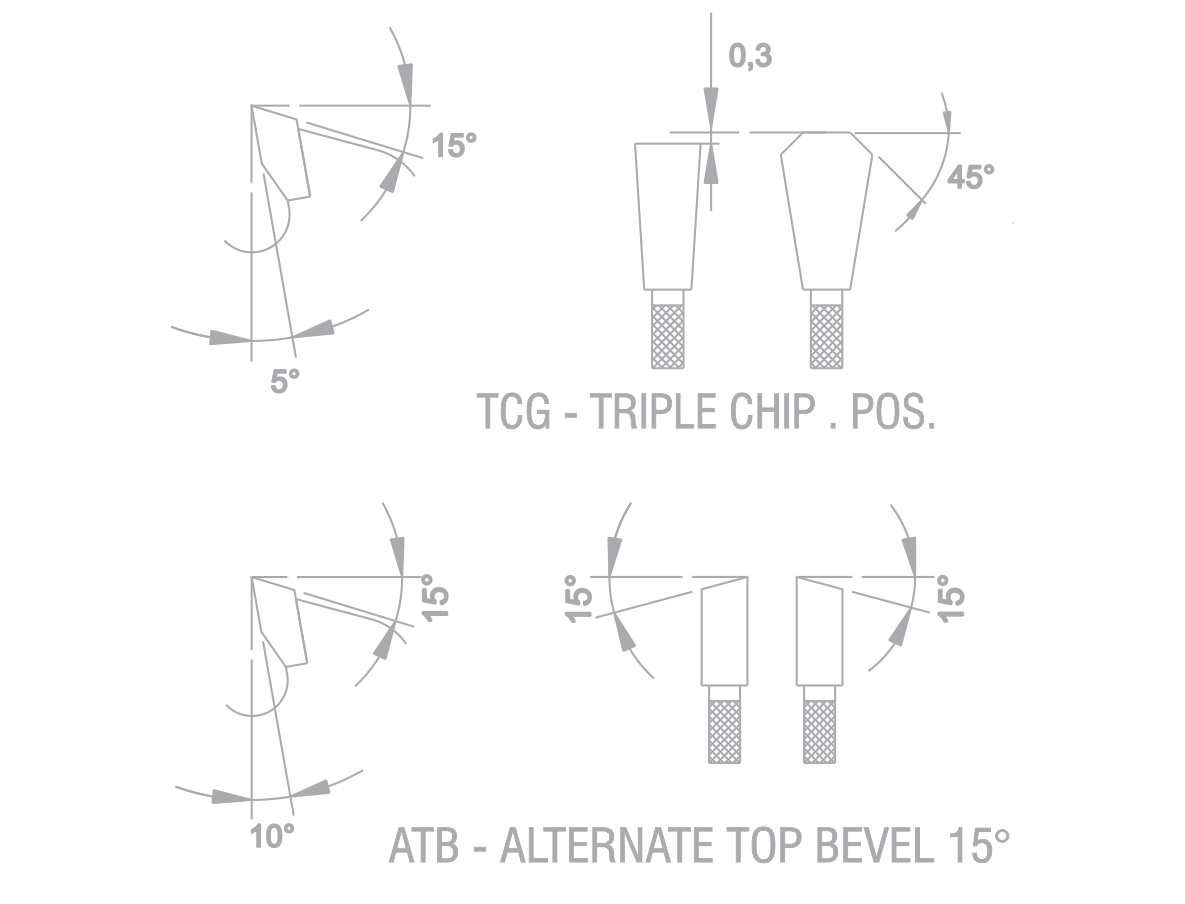

| 5o - 10o | - | ATB |
| Material :- To Cut Poly-Glass , Profile Plastic. |
| Machine :- Used On Automatic Or Protable Saws. |
| Application :- Cross Cutting Aluminium, Hand Poly-Glass. |
| ORDER NO | DIA (mm) | THICK (mm) | BORE (mm) | THEETH | THOOTH TYPE |
| 42 - 175 024 080 | 175 | 2.4 | 25.4 | 80 | ATB |
| 42 - 255 016 100 | 255 | 1.6 | 25.4 | 100 | ATB |
| 42 - 255 018 100 | 255 | 1.8 | 25.4 | 100 | ATB |
| 42 - 255 020 100 | 255 | 2.0 | 25.4 | 100 | ATB |
| 42 - 255 022 100 | 255 | 2.2 | 25.4 | 100 | ATB |
| 42 - 255 025 100 | 255 | 2.5 | 25.4 | 100 | ATB |
| 42 - 305 016 100 | 305 | 1.6 | 25.4 | 100 | ATB |
| 42 - 305 018 100 | 305 | 1.8 | 25.4 | 100 | TCG |
| 42 - 305 020 100 | 305 | 2.0 | 25.4 | 100 | TCG |
| 42 - 305 022 100 | 305 | 2.2 | 25.4 | 100 | ATB |
