Type - 24

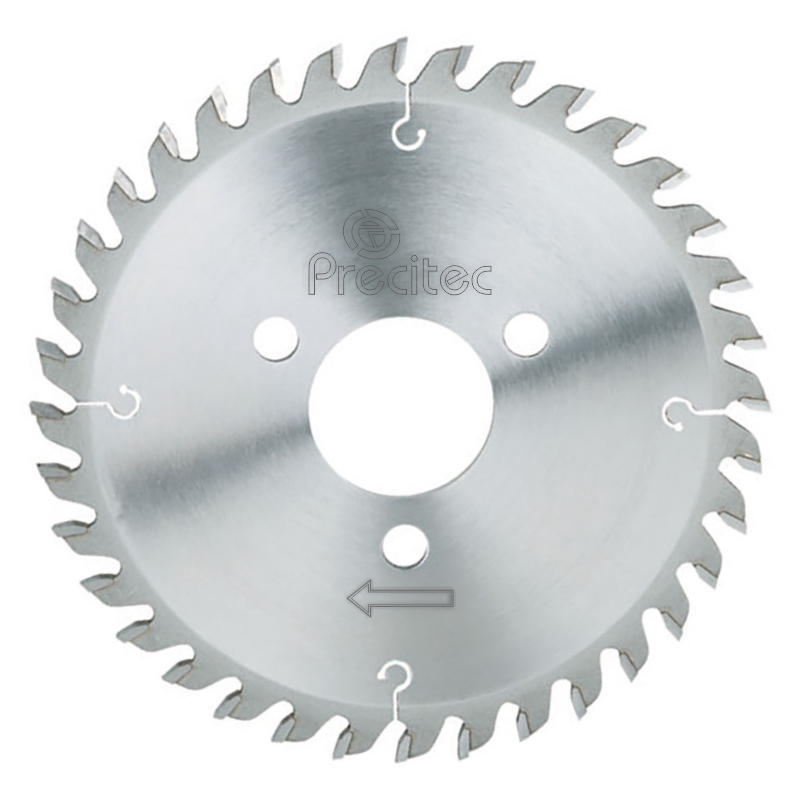

TCT circluar saws conical scoring for beam saw machine
| Diameter | Teeth | Bore |
| 150mm | 36 | 30mm |
| Hook | Pinhole | Tooth Type |

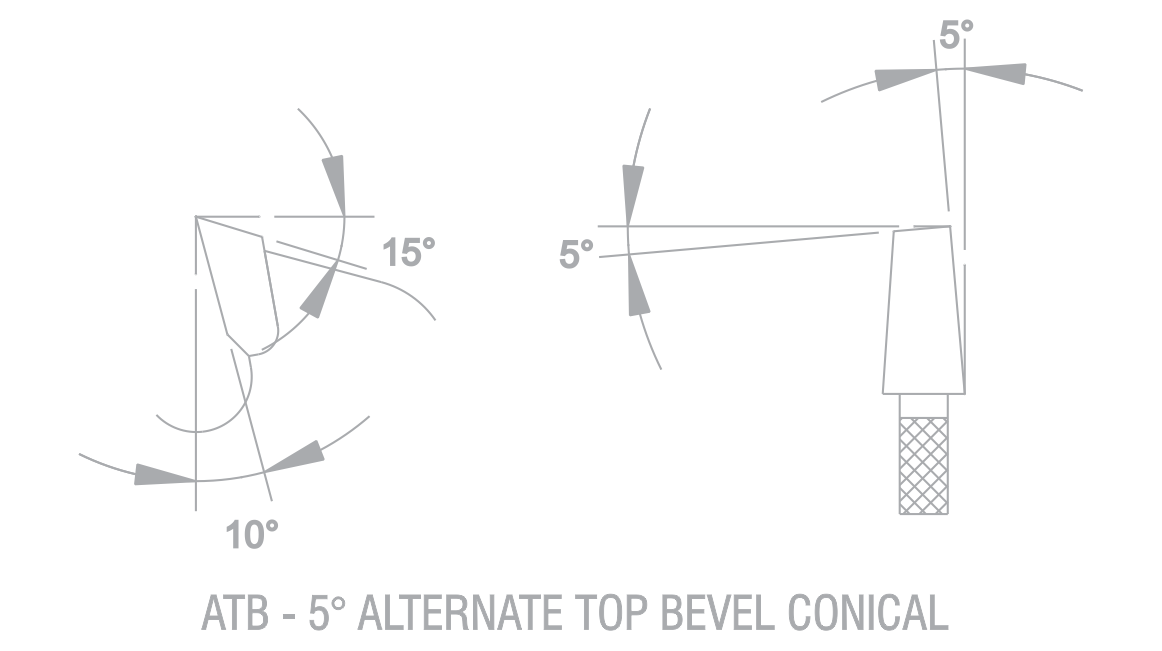

| 10o | - | CON./ATB |
| Material :- Single or Double-Sided , Laminated Panels. |
| Machine :- Horizontal Sizing Machines Equipped With Scoring Unit For Vertical Adjustment. |
| Application :- For Chip-Free Scoring On Plastic - Laminated Panels. |
| ORDER NO | DIA (mm) | THICK (mm) | BORE (mm) | THEETH | THOOTH TYPE |
| 24 - 150 030 | 150 | 4.4-5.4 | 30 | 36 | CON./ATB |
| 24 - 150 045 | 150 | 4.3-5.5 | 45 | 36 | CON./ATB |
| 24 - 160 030 | 160 | 4.3-5.5 | 30 | 36 | CON./ATB |
| 24 - 160 045 | 160 | 4.3-5.5 | 45 | 36 | CON./ATB |
| 24 - 180 030 | 180 | 4.3-5.5 | 30 | 36 | CON./ATB |
| 24 - 180 045 | 180 | 4.3-5.5 | 45 | 36 | CON./ATB |
| 24 - 240 045 | 200 | 4.3-5.5 | 45 | 36 | CON./ATB |
| 24 -240 065 | 200 | 4.3-5.5 | 65 | 36 | CON./ATB |
