Type - 36

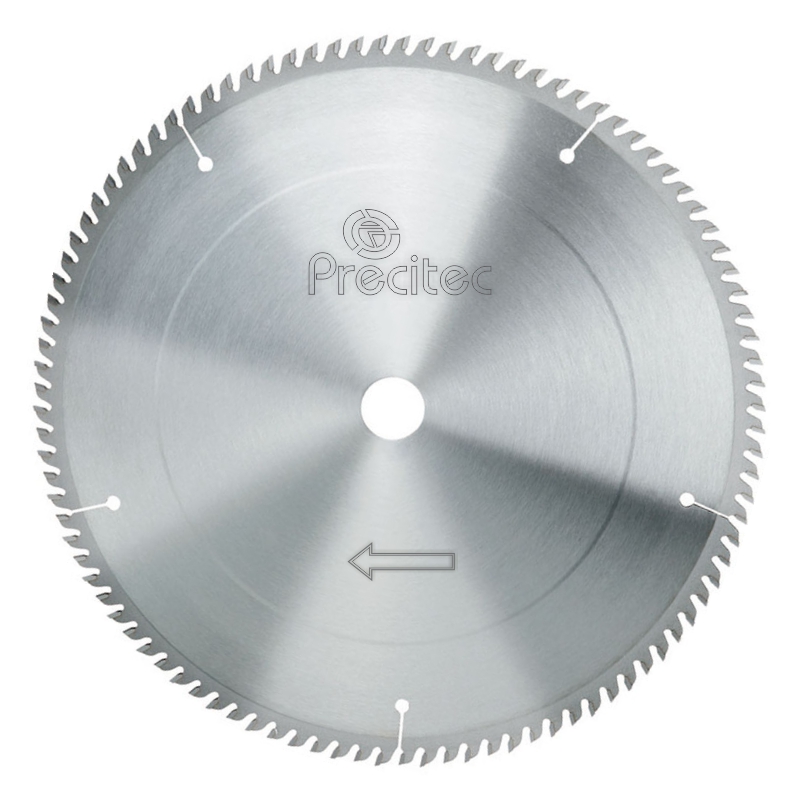

T.C.T. CIRCULAR SAWS FOR NON FERROUS SOLID BAR ROD CUTTING
| Diameter | Teeth | Bore |
| 355mm | 60 | 25.4mm |
| Hook | Pinhole | Tooth Type |
| 5o | - | TCG |
| Material :- Aluminium , Brass , Copper , Solid Alloys , Hard Plastic. |
| Machine :- Precision Hydraulic Saw , Single Or Double Miter Saws With Mechanical Clamping & The Works Piece. |
| Application :- For Cutting Solid Rod & Billet. |
| ORDER NO | DIA (mm) | THICK (mm) | BORE (mm) | THEETH | THOOTH TYPE |
| 36 - 355 035 060 | 355 | 3.5 | 25.4 | 60 | TCG |
| 36 - 405 040 048 | 405 | 4.0 | 25.4 | 48 | TCG |
| 36 - 405 040 060 | 405 | 4.0 | 25.4 | 60 | TCG |
| 36 - 405 040 080 | 405 | 4.0 | 25.4 | 80 | TCG |
| 36 - 455 040 060 | 455 | 4.0 | 25.4 | 60 | TCG |
| 36 - 500 040 056 | 500 | 4.0 | 25.4 | 56 | TCG |
| 36 - 500 040 060 | 500 | 4.0 | 25.4 | 60 | TCG |
| 36 - 500 040 072 | 500 | 4.0 | 25.4 | 72 | TCG |
| 36 - 500 040 080 | 500 | 4.0 | 25.4 | 80 | TCG |
| 36 - 600 040 060 | 600 | 4.0 | 25.4 | 60 | TCG |
| 36 - 600 040 072 | 600 | 4.0 | 25.4 | 72 | TCG |
| 36 - 660 040 072 | 660 | 4.0 | 25.4 | 72 | TCG |
| 36 - 660 040 078 | 660 | 4.0 | 25.4 | 78 | TCG |
| 36 - 700 050 056 | 700 | 5.0 | 25.4 | 56 | TCG |
| 36 - 700 050 072 | 700 | 5.0 | 25.4 | 72 | TCG |
| 36 - 800 055 060 | 800 | 5.5 | 25.4 | 60 | TCG |
| 36 - 800 055 072 | 800 | 5.5 | 25.4 | 72 | TCG |
| 36 - 800 055 078 | 800 | 5.5 | 25.4 | 78 | TCG |
| 36 - 900 060 042 | 900 | 6.0 | 25.4 | 42 | TCG |
| 36 - 900 060 060 | 900 | 6.0 | 25.4 | 60 | TCG |
| 36 - 900 060 072 | 900 | 6.0 | 25.4 | 72 | TCG |
| 36 - 900 060 084 | 900 | 6.0 | 25.4 | 84 | TCG |
| 36 - 1000 072 | 1000 | 8.0 | 100 | 72 | TCG |
| 36 - 1200 084 | 1200 | 8.0 | 100 | 84 | TCG |
