Type - 28

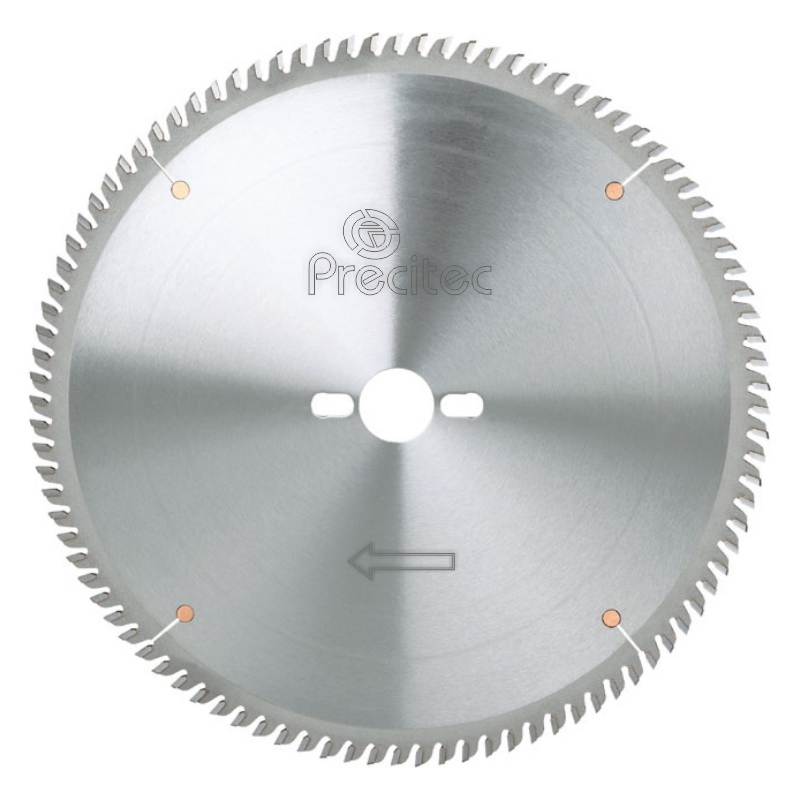

T.C.T. CIRCULAR SAWS FOR U-PVC DOOR & WINDOW
| Diameter | Teeth | Bore |
| 250mm | 80 | 30mm |
| Hook | Pinhole | Tooth Type |

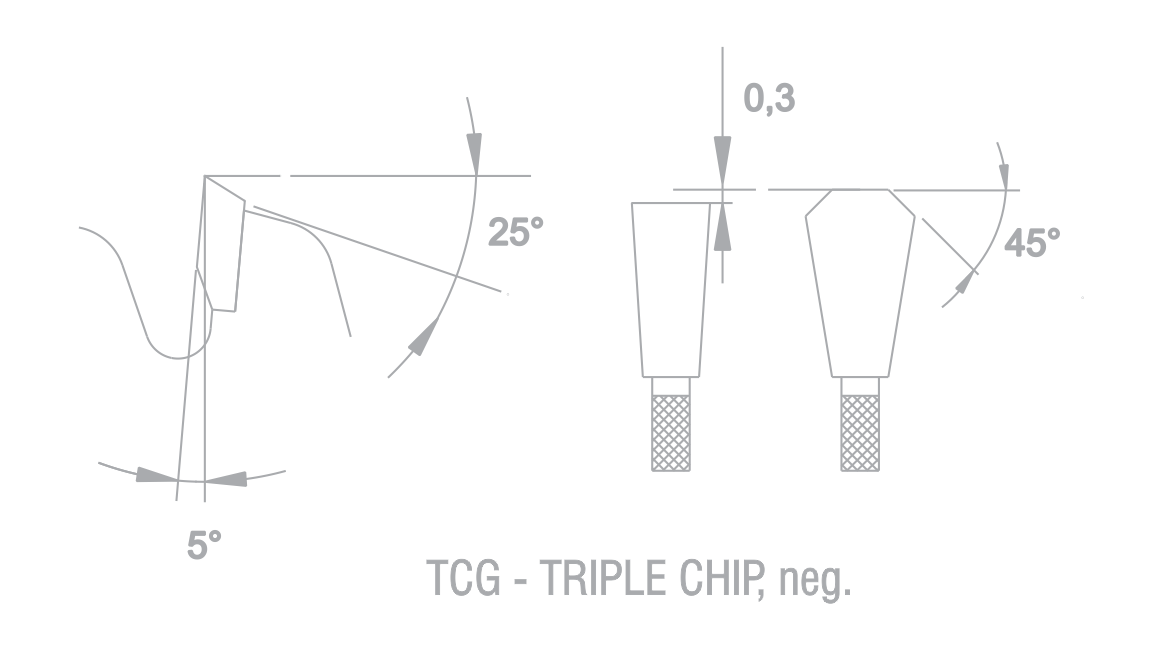

| 5o | - | TCG neg. |
| Material :- U-PVC . |
| Machine :- Table Saw , Single Or Double Miter Saws With Mechanical Clamping Of The Piece. |
| Application :- For Cutting And Dividing U-PVC Profile. |
| ORDER NO | DIA (mm) | THICK (mm) | BORE (mm) | THEETH | THOOTH TYPE |
| 28 - 250 032 080 | 250 | 3.2 | 30 | 80 | TCG neg. |
| 28 - 300 032 072 | 300 | 3.2 | 30 | 72 | TCG neg. |
| 28 - 300 032 096 | 300 | 3.2 | 30 | 96 | TCG neg. |
| 28 - 300 032 100 | 300 | 3.2 | 30 | 100 | TCG neg. |
| 28 - 300 032 120 | 300 | 3.2 | 30 | 120 | TCG neg. |
| 28 - 350 035 084 | 350 | 3.5 | 30 | 84 | TCG neg. |
| 28 - 350 035 108 | 350 | 3.5 | 30 | 108 | TCG neg. |
| 28 - 350 035 120 | 350 | 3.5 | 30 | 120 | TCG neg. |
| 28 - 400 040 096 | 400 | 4.0 | 30 | 96 | TCG neg. |
| 28 - 450 040 096 | 450 | 4.0 | 30 | 96 | TCG neg. |
| 28 - 450 040 108 | 450 | 4.0 | 30 | 108 | TCG neg. |
| 28 - 530 042 120 | 530 | 4.2 | 30 | 120 | TCG neg. |
