Type - 38

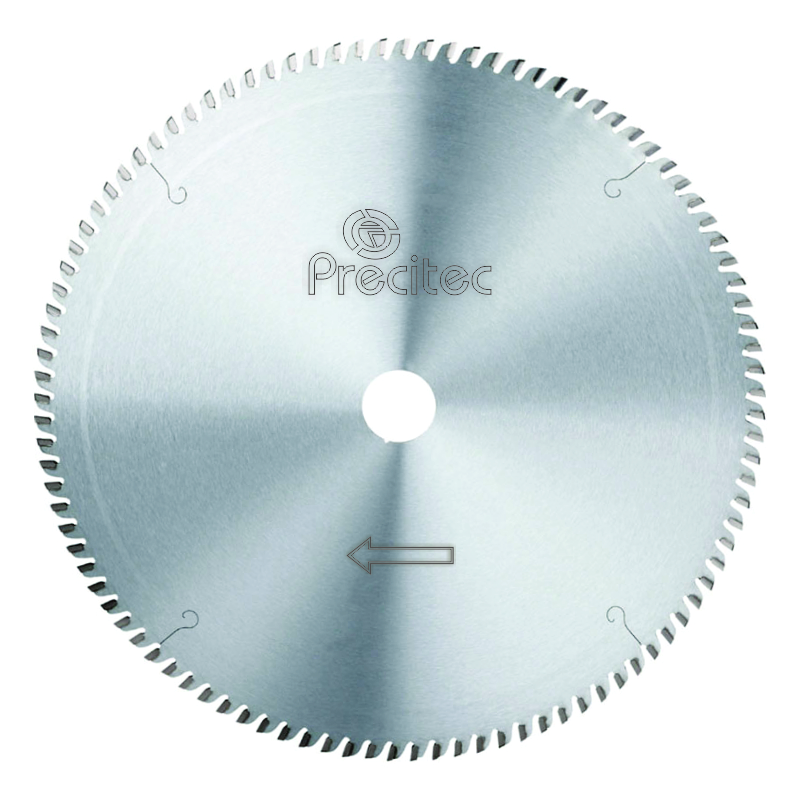

T.C.T. CIRCULAR SAWS FOR NON FERROUS PROFILE CUTTING
| Diameter | Teeth | Bore |
| 250mm | 60 | 25.4mm |
| Hook | Pinhole | Tooth Type |

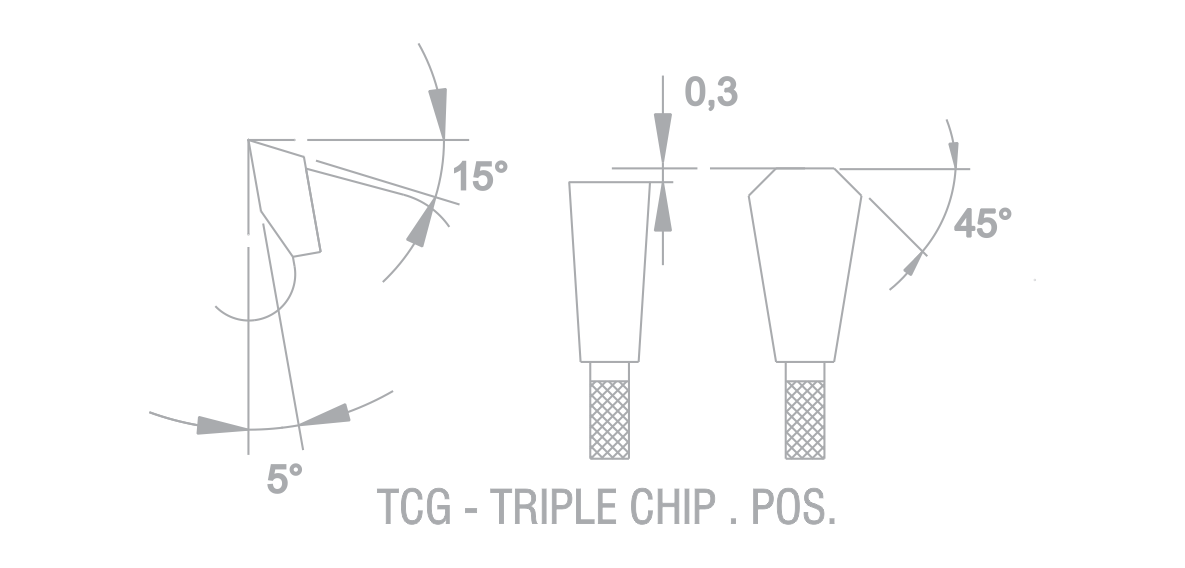

| 5o | - | TCG |
| Material :- Aluminium , Brass , Copper Alloys , Plastic Composite Material . |
| Machine :- Table Saws , Single Or Double Miter Saws With Mechanical clamping Of The Work Piece . |
| Application :- For Cutting And Dividing Tubes Drawn Products And Solid Blocks. |
| ORDER NO | DIA (mm) | THICK (mm) | BORE (mm) | THEETH | THOOTH TYPE |
| 38 - 250 032 060 | 250 | 3.2 | 25.4 | 60 | TCG |
| 38 - 250 032 080 | 250 | 3.2 | 25.4 | 80 | TCG |
| 38 - 300 032 072 | 300 | 3.2 | 25.4 | 72 | TCG |
| 38 - 300 032 084 | 300 | 3.2 | 25.4 | 84 | TCG |
| 38 - 300 032 096 | 300 | 3.2 | 25.4 | 96 | TCG |
| 38 - 350 035 056 | 350 | 3.5 | 25.4 | 56 | TCG |
| 38 - 350 035 072 | 350 | 3.5 | 25.4 | 72 | TCG |
| 38 - 350 035 096 | 350 | 3.5 | 25.4 | 96 | TCG |
| 38 - 350 035 108 | 350 | 3.5 | 25.4 | 108 | TCG |
| 38 - 400 040 072 | 400 | 4.0 | 25.4 | 72 | TCG |
| 38 - 400 040 096 | 400 | 4.0 | 25.4 | 96 | TCG |
| 38 - 400 035 120 | 400 | 3.5 | 25.4 | 120 | TCG |
| 38 - 400 040 120 | 400 | 4.0 | 25.4 | 120 | TCG |
| 38 - 450 035 096 | 450 | 3.5 | 25.4 | 96 | TCG |
| 38 - 450 035 120 | 450 | 3.5 | 25.4 | 120 | TCG |
| 38 - 450 035 144 | 450 | 3.5 | 25.4 | 144 | TCG |
| 38 - 450 040 096 | 450 | 4.0 | 25.4 | 96 | TCG |
| 38 - 450 040 120 | 450 | 4.0 | 25.4 | 120 | TCG |
| 38 - 450 040 144 | 450 | 4.0 | 25.4 | 144 | TCG |
| 38 - 500 040 120 | 500 | 4.0 | 25.4 | 120 | TCG |
| 38 - 500 040 144 | 500 | 4.0 | 25.4 | 144 | TCG |
| 38 - 550 040 120 | 550 | 4.0 | 25.4 | 120 | TCG |
| 38 - 600 040 120 | 600 | 4.0 | 25.4 | 120 | TCG |
| 38 - 600 040 144 | 600 | 4.0 | 25.4 | 144 | TCG |
| 38 - 600 040 192 | 600 | 4.0 | 25.4 | 192 | TCG |
| 38 - 700 050 080 | 700 | 5.0 | 25.4 | 80 | TCG |
| 38 - 700 050 120 | 700 | 5.0 | 25.4 | 120 | TCG |
| 38 - 700 050 144 | 700 | 5.0 | 25.4 | 144 | TCG |
| 38 - 800 060 120 | 800 | 5.5 | 25.4 | 120 | TCG |
| 38 - 800 060 144 | 800 | 5.5 | 25.4 | 144 | TCG |
| 38 - 900 060 072 | 900 | 6.0 | 25.4 | 72 | TCG |
| 38 - 900 060 120 | 900 | 6.0 | 25.4 | 120 | TCG |
| 38 - 900 060 144 | 900 | 6.0 | 25.4 | 144 | TCG |
| 38 - 965 060 072 | 965 | 6.0 | 25.4 | 72 | TCG |
| 38 - 1000 120 | 1000 | 8.0 | 100 | 120 | TCG |
| 38 - 1000 160 | 1000 | 8.0 | 100 | 160 | TCG |
| 38 - 1200 180 | 1200 | 8.0 | 100 | 180 | TCG |
| 38 - 1560 240 | 1560 | 10 | 120 | 240 | TCG |
| 38 - 1680 260 | 1680 | 10 | 150 | 260 | TCG |
