Type - 16

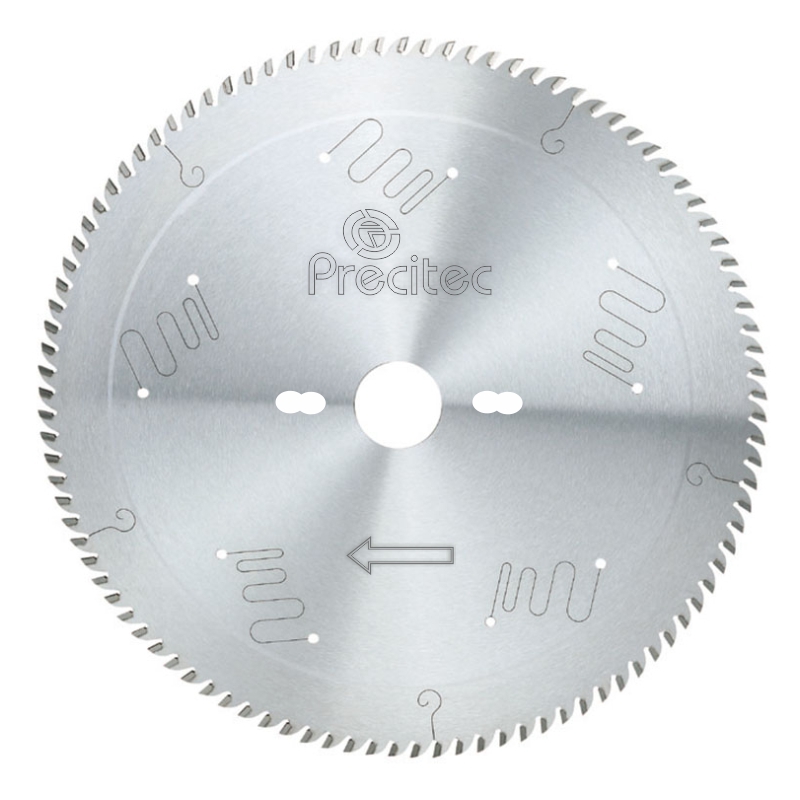

T.C.T. PANEL SIZING CIRCULAR SAWS
| Diameter | Teeth | Bore |
| 250mm | 80 | 30mm |
| Hook | Pinhole | Tooth Type |

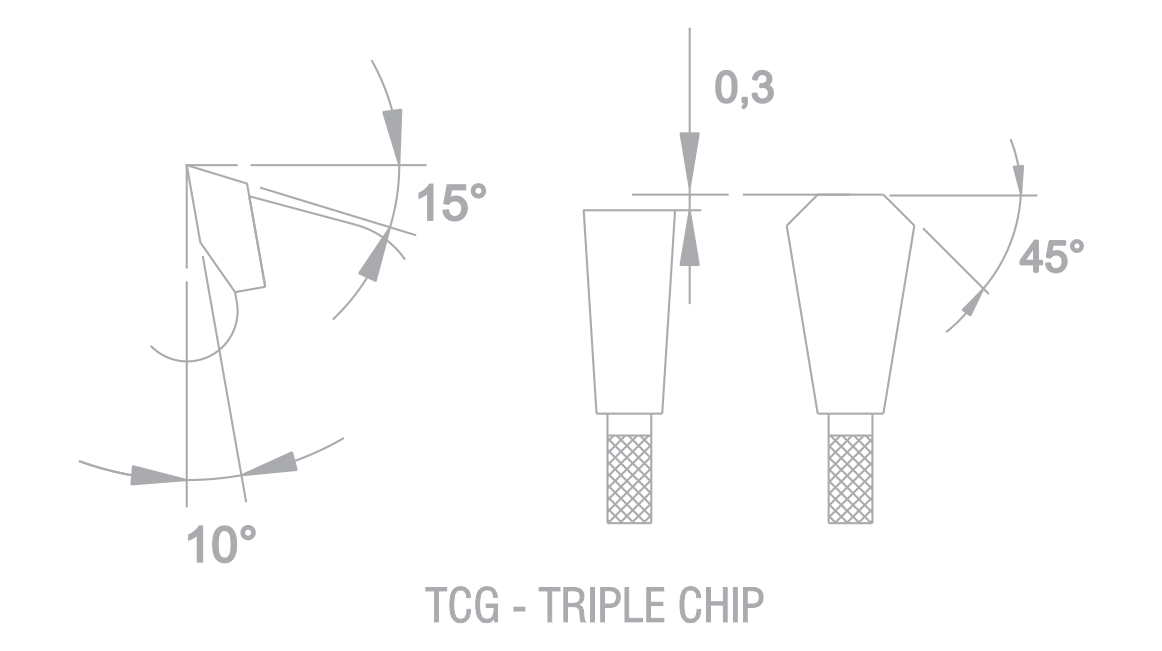

| 10o | 2/10/60 + 2/7/42 + 2/9/46.4 | TCG |
| Material :- Chip Board , MDF , Laminated Panels. |
| Machine :- Horizonatal Panel Sizing Machine. |
| Application :- For Sizing Singal And Multiple Panels. |
| ORDER NO | DIA (mm) | THICK (mm) | BORE (mm) | THEETH | PIN HOLE | THOOTH TYPE |
| 16 - 250 032 080 TR | 250 | 3.2 | 30 | 80 | 2/10/60 + 2/7/42 + 2/9/46.4 | TCG |
| 16 - 300 032 072 TR | 300 | 3.2 | 30 | 72 | 2/10/60 + 2/7/42 + 2/9/46.4 | TCG |
| 16 - 300 032 096 TR | 300 | 3.2 | 30 | 96 | 2/10/60 + 2/7/42 + 2/9/46.4 | TCG |
| 16 - 350 035 108 TR | 350 | 3.5 | 30 | 108 | 2/10/60 + 2/7/42 + 2/9/46.4 | TCG |
| 16 - 250 032 048 A | 250 | 3.2 | 30 | 48 | 2/10/60 + 2/7/42 + 2/9/46.4 | ATB |
| 16 - 300 032 048 A | 300 | 3.2 | 30 | 48 | 2/10/60 + 2/7/42 + 2/9/46.4 | ATB |
| 16 - 300 032 072 A | 300 | 3.2 | 30 | 72 | 2/10/60 + 2/7/42 + 2/9/46.4 | ATB |
| 16 - 300 032 096 A | 300 | 3.2 | 30 | 96 | 2/10/60 + 2/7/42 + 2/9/46.4 | ATB |
| 16 - 350 035 072 A | 350 | 3.5 | 30 | 72 | 2/10/60 + 2/7/42 + 2/9/46.4 | ATB |
| 16 -350 035 054 A | 350 | 3.5 | 30 | 54 | 2/10/60 + 2/7/42 + 2/9/46.4 | ATB |
| 16 -350 035 108 A | 350 | 3.5 | 30 | 108 | 2/10/60 + 2/7/42 + 2/9/46.4 | ATB |
