Type - 32

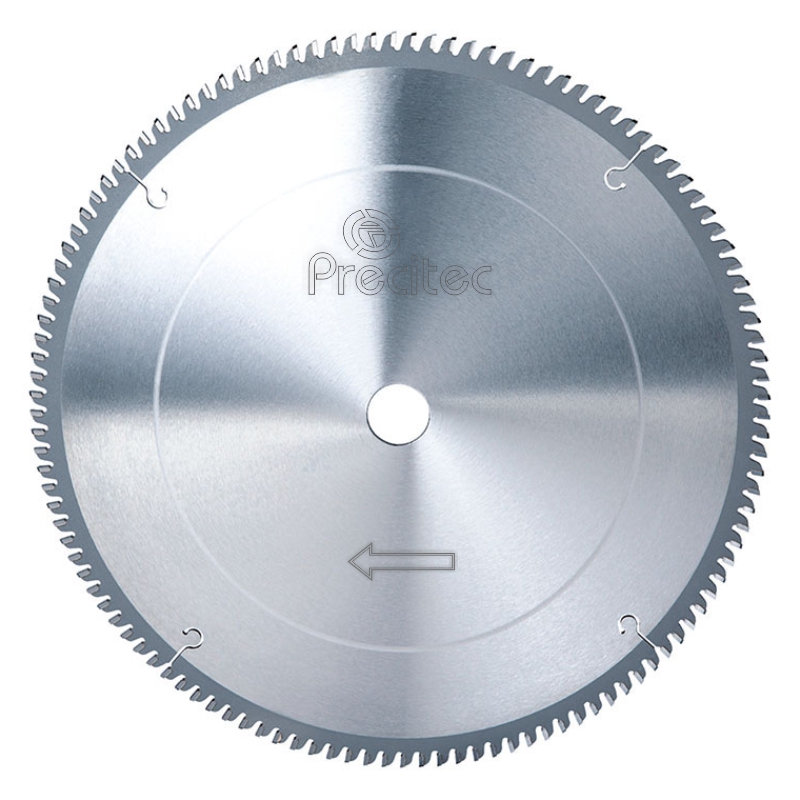

TCT CIRCULAR SAWS FOR PVC / C PVC PLASTIC CUTTING
| Diameter | Teeth | Bore |
| 200mm | 60 | 25.4mm |

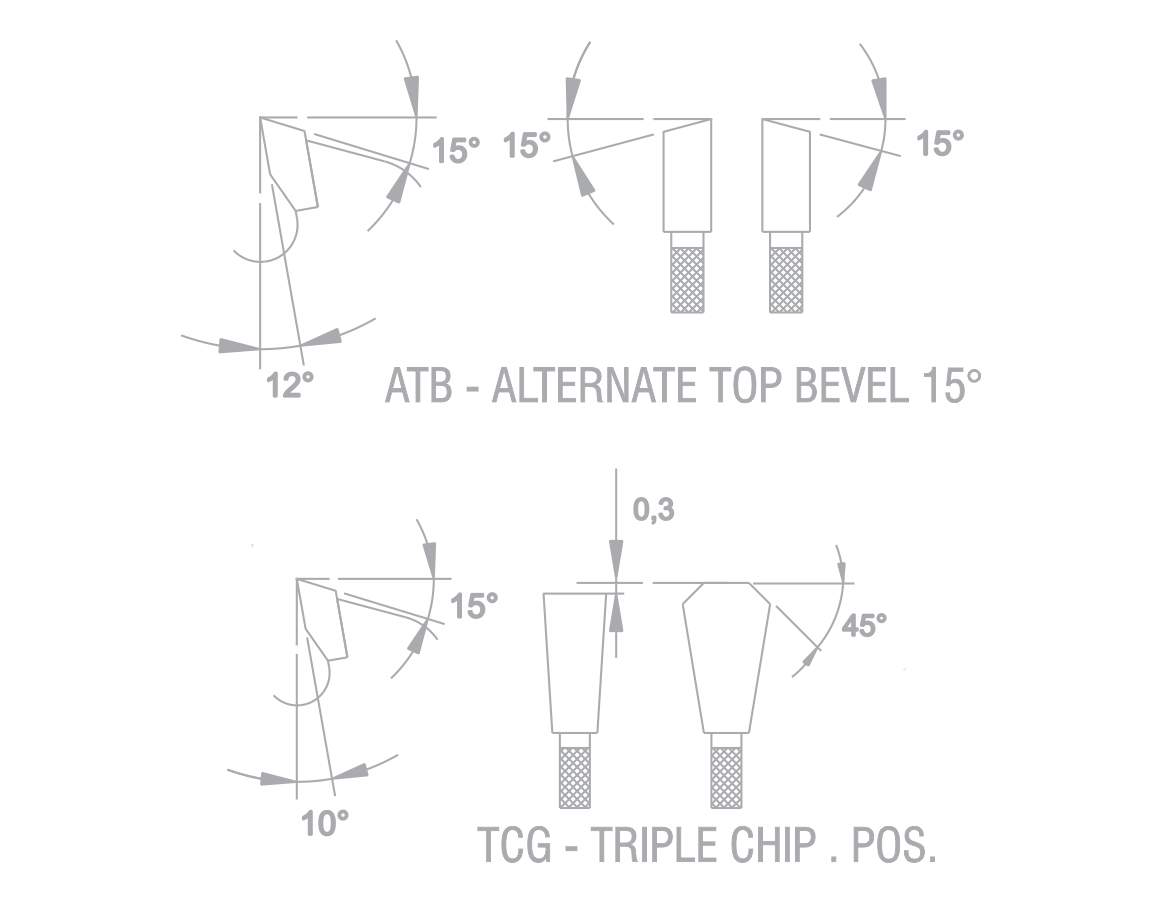

| Hook | Pinhole | Tooth Type |
| 10o - 12o | - | ATB |
| Material | : Hard Plastic. |
| Machine | : Automatic Extuder Machine. |
| Application | : For Cutting And Dividing Plastic Products |
| ORDER NO | DIA (mm) | THICK (mm) | BORE (mm) | THEETH | THOOTH TYPE |
| 32 - 200 030 060 | 200 | 3.0 | 25.4 | 60 | ATB |
| 32 - 250 032 080 | 250 | 3.2 | 25.4 | 80 | ATB |
| 32 - 250 032 100 | 250 | 3.2 | 25.4 | 100 | ATB |
| 32 - 300 032 048 | 300 | 3.2 | 25.4 | 48 | ATB |
| 32 - 300 032 096 | 300 | 3.2 | 25.4 | 96 | ATB |
| 32 - 305 032 060 | 305 | 2.8 | 25.4 | 60 | ATB |
| 32 - 305 032 096 | 305 | 3.2 | 25.4 | 96 | ATB |
| 32 - 350 035 108 | 350 | 3.5 | 25.4 | 108 | ATB |
| 32 - 350 035 120 | 350 | 3.5 | 25.4 | 120 | ATB |
| 32 - 500 030 160 | 500 | 3.0 | 25.4 | 160 | ATB |
| 32 - 500 040 160 | 500 | 4.0 | 25.4 | 160 | ATB |
| 32 - 520 040 160 | 520 | 4.0 | 25.4 | 160 | ATB |
| 32 - 530 040 160 | 530 | 4.0 | 25.4 | 160 | ATB |
| 32 - 550 040 170 | 550 | 4.0 | 25.4 | 170 | ATB |
| 32 - 630 040 192 | 630 | 4.0 | 25.4 | 192 | ATB |
| 32 - 660 040 220 | 660 | 4.0 | 25.4 | 220 | ATB |
| 32 - 850 060 240 | 850 | 6.0 | 50 | 240 | ATB |
